Sheave Bearings, Crane Bearings Features:
1.Improved seal: Contact seal increases resistance to entry of water or foreign substances.
2.High load capacity: When used as a sheave bearing, radial and axial load capacities are increased
3.Corrosion resistance: Phosphate surface treatment improves resistance to rust.
4.Easy to apply grease: Holes provided on inner ring facilitate grease replenishment, even while the bearing is mounted.
5.Fewer surrounding parts: With snap rings for the outer ring, fewer parts are required around the bearing for a more cost-effective sheave.

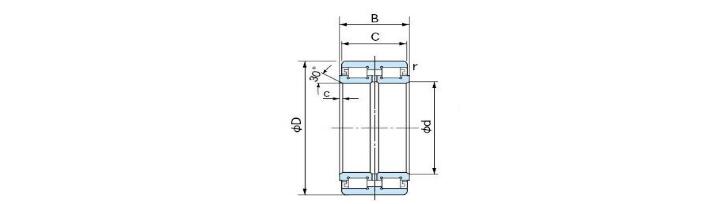

Sheave Bearing, Crane Bearing Basic Design: Full complement. Double row. Sealed on both sides.
Highest dynamic & static load ratings: Maximum utilization of bearing section provides maximum load ratings.
Superior sealing capability: Unique design rubber contact seal prevents dust & water invasion.
Location: Easy to locate axially due to snap rings on both sides.
Lubrication: Lubricate with a lithium soap-based grease containing an EP additive.
Relubrication: Lubricate through lubrication hole & grooves only in inner ring.
Operating temperature: Suitable for -30 to +120°C.
Application: Highly suitable in rope sheave.
