UCPW200 Series

1-1/16

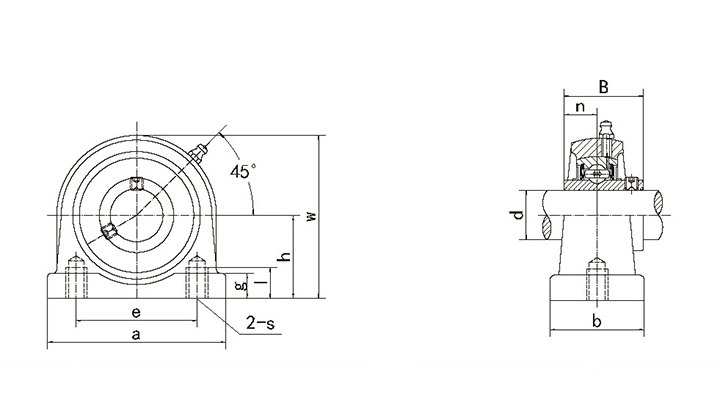

Unit NO.	Dimensions(mm/in.)											Bolt Size mm/in.	Bearing NO.	Housing NO.	Weight(kg)
Unit NO.	d	h	a	e	b	s	l	g	w	B	n	Bolt Size mm/in.	Bearing NO.	Housing NO.	Weight(kg)
UCPWUCSPW201	12	30.2	63	47	30	M8	10	11	57	27.4	11.5	M8	UCS201	PW201	0.484
UCPW 201-8	1/2	1-3/16	2-31/64	1-27/32	1-3/16	M8	25/64	7/16	2-1/4	1.0787	0.4528	M8	UCS201-8	PW201	0.474
UCPWUCSPW202	15	1-3/16	2-31/64	1-27/32	1-3/16	M8	25/64	7/16	2-1/4	1.0787	0.4528	M8	UCS202	PW202	0.474
UCPW 202-9	9/16	1-3/16	2-31/64	1-27/32	1-3/16	M8	25/64	7/16	2-1/4	1.0787	0.4528	M8	UCS202-9	PW202	0.474
UCPW 202-10	5/8	1-3/16	2-31/64	1-27/32	1-3/16	M8	25/64	7/16	2-1/4	1.0787	0.4528	M8	UCS202-10	PW202	0.474
UCPWUCSPW203	17	1-3/16	2-31/64	1-27/32	1-3/16	M8	25/64	7/16	2-1/4	1.0787	0.4528	M8	UCS203	PW203	0.464
UCPW 203-11	11/16	1-3/16	2-31/64	1-27/32	1-3/16	M8	25/64	7/16	2-1/4	1.0787	0.4528	M8	UCS203-11	PW203	0.454
UCPW204	20	33.3	65	50.8	32	M8	15	14.5	64	31	12.7	M8	UC204	PW204	0.493
UCPW 204-12	3/4	1-5/16	2-9/16	2	1-17/64	M8	19/32	37/64	2-33/64	1.2205	0.5	M8	UC204-12	PW204	0.493
UCPW205	25	36.5	70	50.8	36	M10	15	13	70	34.1	14.3	M10	UC205	PW205	0.593
UCPW 205-13	13/16	1-7/16	2-3/4	2	1-27/64	M10	19/32	33/64	2-3/4	1.3425	0.563	M10	UC205-13	PW205	0.63
UCPW 205-14	7/8	1-7/16	2-3/4	2	1-27/64	M10	19/32	33/64	2-3/4	1.3425	0.563	M10	UC205-14	PW205	0.62
UCPW 205-15	15/16	1-7/16	2-3/4	2	1-27/64	M10	19/32	33/64	2-3/4	1.3425	0.563	M10	UC205-15	PW205	0.6
UCPW 205-16	1	1-7/16	2-3/4	2	1-27/64	M10	19/32	33/64	2-3/4	1.3425	0.563	M10	UC205-16	PW205	0.59
UCPW206	30	42.9	98	76.2	40	M10	18	16	82	38.1	15.9	M10	UC206	PW206	1.108
UCPW 206-17	1-11/16	3-55/64	3	1-37/64	M10	45/64	5/8	3-15/64	1.5	0.626	M10	UC206-17	PW206	1.118
UCPW 206-18	1-1/8	1-11/16	3-55/64	3	1-37/64	M10	45/64	5/8	3-15/64	1.5	0.626	M10	UC206-18	PW206	1.128
UCPW 206-19	1-3/16	1-11/16	3-55/64	3	1-37/64	M10	45/64	5/8	3-15/64	1.5	0.626	M10	UC206-19	PW206	1.108
UCPW 206-20	1-1/4	1-11/16	3-55/64	3	1-37/64	M10	45/64	5/8	3-15/64	1.5	0.626	M10	UC206-20	PW206	1.098
UCPW207	35	47.6	103	82.6	45	M10	20	19	93	42.9	17.5	M10	UC207	PW207	1.436

Unit NO.	Dimensions(mm/in.)											Bolt Size mm/in.	Bearing NO.	Housing NO.	Weight(kg)
Unit NO.	d	h	a	e	b	s	l	g	w	B	n	Bolt Size mm/in.	Bearing NO.	Housing NO.	Weight(kg)
UCPW 207-20	1-1/4	1-7/8	4-1/16	3-1/4	1-49/64	M10	25/32	3/4	3-21/32	1.689	0.689	M10	UC207-20	PW207	1.501
UCPW 207-21	1-5/16	1-7/8	4-1/16	3-1/4	1-49/64	M10	25/32	3/4	3-21/32	1.689	0.689	M10	UC207-21	PW207	1.471
UCPW 207-22	1-3/8	1-7/8	4-1/16	3-1/4	1-49/64	M10	25/32	3/4	3-21/32	1.689	0.689	M10	UC207-22	PW207	1.441
UCPW 207-23	1-7/16	1-7/8	4-1/16	3-1/4	1-49/64	M10	25/32	3/4	3-21/32	1.689	0.689	M10	UC207-23	PW207	1.411
UCPW208	40	49.2	116	88.9	48	M12	20	19	99	49.2	19	M12	UC208	PW208	1.761
UCPW 208-24	1-1/2	1-15/16	4-9/16	3-1/2	1-57/64	M12	25/32	3/4	3-57/64	1.937	0.748	M12	UC208-24	PW208	1.801
UCPW 208-25	1-9/16	1-15/16	4-9/16	3-1/2	1-57/64	M12	25/32	3/4	3-57/64	1.937	0.748	M12	UC208-25	PW208	1.771
UCPW209	45	53.9	120	95.3	48	M12	25	19	107	49.2	19	M12	UC209	PW209	1.99
UCPW 209-26	1-5/8	2-1/8	4-23/32	3-3/4	1-57/64	M12	63/64	3/4	4-7/32	1.937	0.748	M12	UC209-26	PW209	2.09
UCPW 209-27	1-11/16	2-1/8	4-23/32	3-3/4	1-57/64	M12	63/64	3/4	4-7/32	1.937	0.748	M12	UC209-27	PW209	2.05
UCPW 209-28	1-3/4	2-1/8	4-23/32	3-3/4	1-57/64	M12	63/64	3/4	4-7/32	1.937	0.748	M12	UC209-28	PW209	2.01
UCPW210	50	57.2	135	101.6	54	M16	25	22	115	51.6	19	M16	UC210	PW210	2.642
UCPW 210-29	1-13/16	2-1/4	5-5/16	4	2-1/8	M16	63/64	55/64	4-17/32	2.0315	0.748	M16	UC210-29	PW210	2.762
UCPW 210-30	1-7/8	2-1/4	5-5/16	4	2-1/8	M16	63/64	55/64	4-17/32	2.0315	0.748	M16	UC210-30	PW210	2.712
UCPW 210-31	1-15/16	2-1/4	5-5/16	4	2-1/8	M16	63/64	55/64	4-17/32	2.0315	0.748	M16	UC210-31	PW210	2.662
UCPW 210-32	2	2-1/4	5-5/16	4	2-1/8	M16	63/64	55/64	4-17/32	2.0315	0.748	M16	UC210-32	PW210	2.622
