Current location: Home > Pillow_blcok_bearings > UCTB200 Series

UCTB200 Series

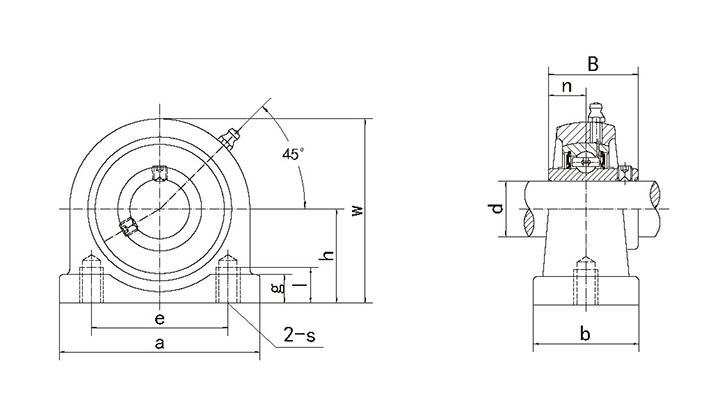

Unit NO. Dimensions(mm/in.) Bolt Size mm/in. Bearing NO. Housing NO. Weight(kg)
d h a e b s g l w B n
UCTB204 20 33.3 65 50.8 32 3/8-16 UNC 14.5 15 64 31 12.7 3/8-16 UNF UC204 TB204 0.489
UCTB 204-12 3/4 1-5/16 2-9/16 2 1-17/64 3/8-16 UNC 37/64 19/32 2-33/64 1.2205 0.5 3/8-16 UNF UC204-12 TB204 0.489
UCTB205 25 36.5 70 50.8 36 3/8-16 UNC 13 15 70 34.1 14.3 3/8-16 UNF UC205 TB205 0.593
UCTB 205-13 13/16 1-7/16 2-3/4 2 1-27/64 3/8-16 UNC 33/64 19/32 2-3/4 1.3425 0.563 3/8-16 UNF UC205-13 TB205 0.63
UCTB 205-14 7/8 1-7/16 2-3/4 2 1-27/64 3/8-16 UNC 33/64 19/32 2-3/4 1.3425 0.563 3/8-16 UNF UC205-14 TB205 0.62
UCTB 205-15 15/16 1-7/16 2-3/4 2 1-27/64 3/8-16 UNC 33/64 19/32 2-3/4 1.3425 0.563 3/8-16 UNF UC205-15 TB205 0.6
UCTB 205-16 1 1-7/16 2-3/4 2 1-27/64 3/8-16 UNC 33/64 19/32 2-3/4 1.3425 0.563 3/8-16 UNF UC205-16 TB205 0.59
UCTB206 30 42.9 98 76.2 40 7/16-14 UNC 16 18 82 38.1 15.9 7/16-14 UNF UC206 TB206 1.11
UCTB 206-17 1-1/16 1-11/16 3-55/64 3 1-37/64 7/16-14 UNC 5/8 45/64 3-15/64 1.5 0.626 7/16-14 UNF UC206-17 TB206 1.12
UCTB 206-18 1-1/8 1-11/16 3-55/64 3 1-37/64 7/16-14 UNC 5/8 45/64 3-15/64 1.5 0.626 7/16-14 UNF UC206-18 TB206 1.13
UCTB 206-19 1-3/16 1-11/16 3-55/64 3 1-37/64 7/16-14 UNC 5/8 45/64 3-15/64 1.5 0.626 7/16-14 UNF UC206-19 TB206 1.11
UCTB 206-20 1-1/4 1-11/16 3-55/64 3 1-37/64 7/16-14 UNC 5/8 45/64 3-15/64 1.5 0.626 7/16-14 UNF UC206-20 TB206 1.1
UCTB207 35 47.6 103 82.6 45 1/2-13 UNC 19 20 93 42.9 17.5 1/2-13 UNF UC207 TB207 1.425
UCTB 207-20 1-1/4 1-7/8 4-1/16 3-1/4 1-49/64 1/2-13 UNC 3/4 25/32 3-21/32 1.689 0.689 1/2-13 UNF UC207-20 TB207 1.49
UCTB 207-21 1-5/16 1-7/8 4-1/16 3-1/4 1-49/64 1/2-13 UNC 3/4 25/32 3-21/32 1.689 0.689 1/2-13 UNF UC207-21 TB207 1.46
UCTB 207-22 1-3/8 1-7/8 4-1/16 3-1/4 1-49/64 1/2-13 UNC 3/4 25/32 3-21/32 1.689 0.689 1/2-13 UNF UC207-22 TB207 1.43
UCTB 207-23 1-7/16 1-7/8 4-1/16 3-1/4 1-49/64 1/2-13 UNC 3/4 25/32 3-21/32 1.689 0.689 1/2-13 UNF UC207-23 TB207 1.4
UCTB208 40 49.2 116 88.9 48 1/2-13 UNC 19 20 99 49.2 19 1/2-13 UNF UC208 TB208 1.759
UCTB 208-24 1-1/2 1-15/16 4-9/16 3-1/2 1-57/64 1/2-13 UNC 3/4 25/32 3-57/64 1.937 0.748 1/2-13 UNF UC208-24 TB208 1.799
UCTB 208-25 1-9/16 1-15/16 4-9/16 3-1/2 1-57/64 1/2-13 UNC 3/4 25/32 3-57/64 1.937 0.748 1/2-13 UNF UC208-25 TB208 1.769

Unit NO. Dimensions(mm/in.) Bolt Size mm/in. Bearing NO. Housing NO. Weight(kg)
d h a e b s g l w B n
UCTB209 45 53.9 120 95.3 48 1/2-13 UNC 19 25 107 49.2 19 1/2-13 UNF UC209 TB209 1.99
UCTB 209-26 1-5/8 2-1/8 4-23/32 3-3/4 1-57/64 1/2-13 UNC 3/4 63/64 4-7/32 1.937 0.748 1/2-13 UNF UC209-26 TB209 2.09
UCTB 209-27 1-11/16 2-1/8 4-23/32 3-3/4 1-57/64 1/2-13 UNC 3/4 63/64 4-7/32 1.937 0.748 1/2-13 UNF UC209-27 TB209 2.05
UCTB 209-28 1-3/4 2-1/8 4-23/32 3-3/4 1-57/64 1/2-13 UNC 3/4 63/64 4-7/32 1.937 0.748 1/2-13 UNF UC209-28 TB209 2.01
UCTB210 50 57.2 135 101.6 54 5/8-11 UNC 22 25 115 51.6 19 5/8-11 UNF UC210 TB210 2.655
UCTB 210-29 1-13/16 2-1/4 5-5/16 4 2-1/8 5/8-11 UNC 55/64 63/64 4-17/32 2.0315 0.748 5/8-11 UNF UC210-29 TB210 2.775
UCTB 210-30 1-7/8 2-1/4 5-5/16 4 2-1/8 5/8-11 UNC 55/64 63/64 4-17/32 2.0315 0.748 5/8-11 UNF UC210-30 TB210 2.725
UCTB 210-31 1-15/16 2-1/4 5-5/16 4 2-1/8 5/8-11 UNC 55/64 63/64 4-17/32 2.0315 0.748 5/8-11 UNF UC210-31 TB210 2.675
UCTB 210-32 2 2-1/4 5-5/16 4 2-1/8 5/8-11 UNC 55/64 63/64 4-17/32 2.0315 0.748 5/8-11 UNF UC210-32 TB210 2.635
