Current location: Home > Pillow_blcok_bearings > SBFD200 Series

SBFD200 Series

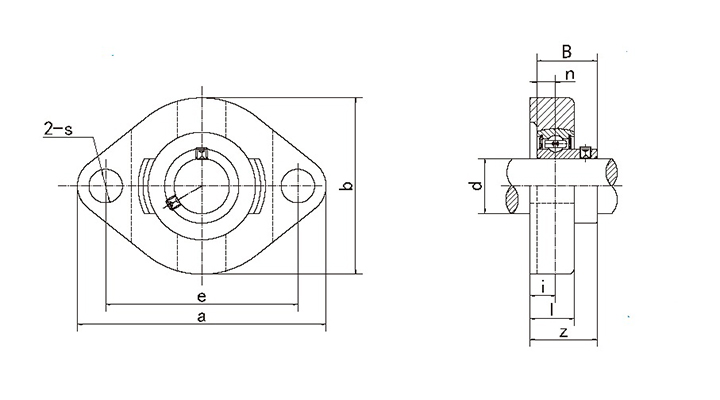

Unit NO. Dimensions(mm/in.) Bolt Size mm/in. Bearing NO. Housing NO. Weight(kg)
d a e b i s l z B n
SBFD201 12 81 63 59 8.5 7 15 24 22 6 M6 SB201 FD201 0.27
SBFD201-8 1/2 3-3/16 2-31/64 2-21/64 21/64 9/32 19/32 61/64 0.8661 0.2362 1/4 SB201-8 FD201 0.27
SBFD202 15 3-3/16 2-31/64 2-21/64 21/64 9/32 19/32 61/64 0.8661 0.2362 1/4 SB202 FD202 0.27
SBFD202-9 9/16 3-3/16 2-31/64 2-21/64 21/64 9/32 19/32 61/64 0.8661 0.2362 1/4 SB202-9 FD202 0.27
SBFD202-10 5/8 3-3/16 2-31/64 2-21/64 21/64 9/32 19/32 61/64 0.8661 0.2362 1/4 SB202-10 FD202 0.27
SBFD203 17 3-3/16 2-31/64 2-21/64 21/64 9/32 19/32 61/64 0.8661 0.2362 1/4 SB203 FD203 0.27
SBFD203-11 11/16 3-3/16 2-31/64 2-21/64 21/64 9/32 19/32 61/64 0.8661 0.2362 1/4 SB203-11 FD203 0.27
SBFD204 20 90 71 67 9.5 10 17 27.5 25 7 M8 SB204 FD204 0.37
SBFD204-12 3/4 3-35/64 2-51/64 2-41/64 3/8 25/64 43/64 1-5/64 0.9843 0.2756 5/16 SB204-12 FD204 0.37
SBFD205 25 95 76 71 9.5 10 17 29 27 7.5 M8 SB205 FD205 0.41
SBFD205-13 13/16 3-3/4 2-63/64 2-51/64 3/8 25/64 43/64 1-9/64 1.063 0.2953 5/16 SB205-13 FD205 0.41
SBFD205-14 7/8 3-3/4 2-63/64 2-51/64 3/8 25/64 43/64 1-9/64 1.063 0.2953 5/16 SB205-14 FD205 0.41
SBFD205-15 15/16 3-3/4 2-63/64 2-51/64 3/8 25/64 43/64 1-9/64 1.063 0.2953 5/16 SB205-15 FD205 0.41
SBFD205-16 1 3-3/4 2-63/64 2-51/64 3/8 25/64 43/64 1-9/64 1.063 0.2953 5/16 SB205-16 FD205 0.41
SBFD206 30 113 90 84 12 12 21 34 30 8 M10 SB206 FD206 0.67
SBFD206-17 1-1/16 4-7/16 3-35/64 3-5/16 15/32 15/32 53/64 1-11/32 1.1811 0.315 3/8 SB206-17 FD206 0.67
SBFD206-18 1-1/8 4-7/16 3-35/64 3-5/16 15/32 15/32 53/64 1-11/32 1.1811 0.315 3/8 SB206-18 FD206 0.67
SBFD206-19 1-3/16 4-7/16 3-35/64 3-5/16 15/32 15/32 53/64 1-11/32 1.1811 0.315 3/8 SB206-19 FD206 0.67
SBFD206-20 1-1/4 4-7/16 3-35/64 3-5/16 15/32 15/32 53/64 1-11/32 1.1811 0.315 3/8 SB206-20 FD206 0.67
SBFD207 35 125 100 94 12.5 12 22 36 32 8.5 M10 SB207 FD207 0.87

Unit NO. Dimensions(mm/in.) Bolt Size mm/in. Bearing NO. Housing NO. Weight(kg)
d a e b i s l z B n
SBFD207-20 1-1/4 4-59/64 3-15/16 3-45/64 1/2 15/32 7/8 1-27/64 1.2598 0.3346 3/8 SB207-20 FD207 0.87
SBFD207-21 1-5/16 4-59/64 3-15/16 3-45/64 1/2 15/32 7/8 1-27/64 1.2598 0.3346 3/8 SB207-21 FD207 0.87
SBFD207-22 1/3/8 4-59/64 3-15/16 3-45/64 1/2 15/32 7/8 1-27/64 1.2598 0.3346 3/8 SB207-22 FD207 0.87
SBFD207-23 1-7/16 4-59/64 3-15/16 3-45/64 1/2 15/32 7/8 1-27/64 1.2598 0.3346 3/8 SB207-23 FD207 0.87
