SAPFTD200 Series

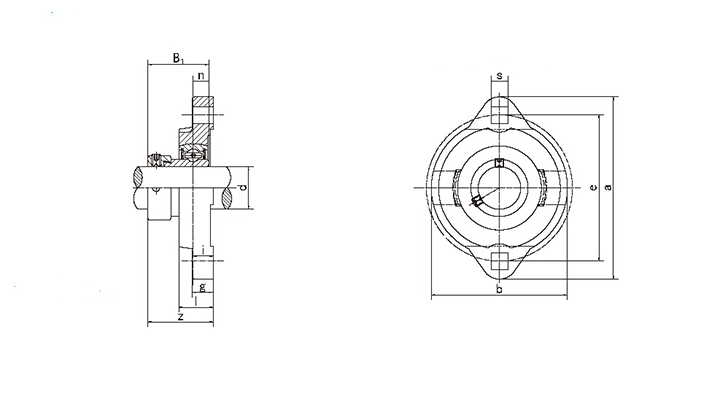

Unit NO. Dimensions(mm/in.) Bolt Size mm/in. Bearing NO. Housing NO. Weight(kg)
d a e b i s g l z B1 n
SAPFTD201 12 82 65 58 12 7.2 10.5 18 34.1 28.6 6.5 1/4 SA201 PFTD201 0.28
SAPFTD201-8 1/2 3-1/4 2-9/16 2-9/32 15/32 9/32 27/64 45/64 1-11/32 1.126 0.2559 1/4 SA201-8 PFTD201 0.28
SAPFTD202 15 3-1/4 2-9/16 2-9/32 15/32 9/32 27/64 45/64 1-11/32 1.126 0.2559 1/4 SA202 PFTD202 0.28
SAPFTD202-9 9/16 3-1/4 2-9/16 2-9/32 15/32 9/32 27/64 45/64 1-11/32 1.126 0.2559 1/4 SA202-9 PFTD202 0.28
SAPFTD202-10 5/8 3-1/4 2-9/16 2-9/32 15/32 9/32 27/64 45/64 1-11/32 1.126 0.2559 1/4 SA202-10 PFTD202 0.28
SAPFTD203 17 3-1/4 2-9/16 2-9/32 15/32 9/32 27/64 45/64 1-11/32 1.126 0.2559 1/4 SA203 PFTD203 0.28
SAPFTD203-11 11/16 3-1/4 2-9/16 2-9/32 15/32 9/32 27/64 45/64 1-11/32 1.126 0.2559 1/4 SA203-11 PFTD203 0.28
SAPFTD204 20 94 71.5 66 12.5 8.7 11 19.5 36 31 7.5 5/16 SA204 PFTD204 0.38
SAPFTD204-12 3/4 3-11/16 2-13/16 2-39/64 1/2 11/32 7/16 49/64 1-27/64 1.2204 0.2953 5/16 SA204-12 PFTD204 0.38
SAPFTD205 25 98 76.2 69 12.5 8.7 11 20 36 31 7.5 5/16 SA205 PFTD205 0.41
SAPFTD205-13 13/16 3-7/8 3 2-23/32 1/2 11/32 7/16 25/32 1-27/64 1.2204 0.2953 5/16 SA205-13 PFTD205 0.41
SAPFTD205-14 7/8 3-7/8 3 2-23/32 1/2 11/32 7/16 25/32 1-27/64 1.2204 0.2953 5/16 SA205-14 PFTD205 0.41
SAPFTD205-15 15/16 3-7/8 3 2-23/32 1/2 11/32 7/16 25/32 1-27/64 1.2204 0.2953 5/16 SA205-15 PFTD205 0.41
SAPFTD205-16 1 3-7/8 3 2-23/32 1/2 11/32 7/16 25/32 1-27/64 1.2204 0.2953 5/16 SA205-16 PFTD205 0.41
SAPFTD206 30 116 89.5 81 13.7 10.3 13 22 40.4 35.7 9 3/8 SA206 PFTD206 0.64
SAPFTD206-17 1-1/16 4-9/16 3-17/32 3-13/64 35/64 13/32 33/64 55/64 1-19/32 1.4055 0.3543 3/8 SA206-17 PFTD206 0.64
SAPFTD206-18 1-1/8 4-9/16 3-17/32 3-13/64 35/64 13/32 33/64 55/64 1-19/32 1.4055 0.3543 3/8 SA206-18 PFTD206 0.64
SAPFTD206-19 1-3/16 4-9/16 3-17/32 3-13/64 35/64 13/32 33/64 55/64 1-19/32 1.4055 0.3543 3/8 SA206-19 PFTD206 0.64
SAPFTD206-20 1-1/4 4-9/16 3-17/32 3-13/64 35/64 13/32 33/64 55/64 1-19/32 1.4055 0.3543 3/8 SA206-20 PFTD206 0.64
SAPFTD207 35 122 100 89 15.4 10.3 13 24 44.8 38.9 9.5 3/8 SA207 PFTD207 0.76

Unit NO. Dimensions(mm/in.) Bolt Size mm/in. Bearing NO. Housing NO. Weight(kg)
d a e b i s g l z B1 n
SAPFTD207-20 1-1/4 4-13/16 3-15/16 3-1/2 39/64 13/32 33/64 61/64 1-49/64 1.5315 0.374 3/8 SA207-20 PFTD207 0.76
SAPFTD207-21 1-5/16 4-13/16 3-15/16 3-1/2 39/64 13/32 33/64 61/64 1-49/64 1.5315 0.374 3/8 SA207-21 PFTD207 0.76
SAPFTD207-22 1/3/8 4-13/16 3-15/16 3-1/2 39/64 13/32 33/64 61/64 1-49/64 1.5315 0.374 3/8 SA207-22 PFTD207 0.76
SAPFTD207-23 1-7/16 4-13/16 3-15/16 3-1/2 39/64 13/32 33/64 61/64 1-49/64 1.5315 0.374 3/8 SA207-23 PFTD207 0.76
