SBPFTD200 Series

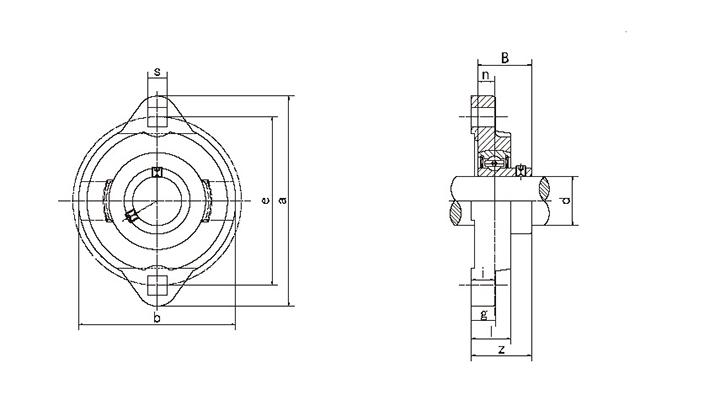

Unit NO. Dimensions(mm/in.) Bolt Size mm/in. Bearing NO. Housing NO. Weight(kg)
d a e b i s g l z B n
SBPFTD201 12 82 65 58 12 7.2 10.5 18 28 22 6 1/4 SB201 PFTD201 0.25
SBPFTD201-8 1/2 3-1/4 2-9/16 2-9/32 15/32 9/32 27/64 45/64 1-7/64 0.8661 0.2362 1/4 SB201-8 PFTD201 0.25
SBPFTD202 15 3-1/4 2-9/16 2-9/32 15/32 9/32 27/64 45/64 1-7/64 0.8661 0.2362 1/4 SB202 PFTD202 0.25
SBPFTD202-9 9/16 3-1/4 2-9/16 2-9/32 15/32 9/32 27/64 45/64 1-7/64 0.8661 0.2362 1/4 SB202-9 PFTD202 0.25
SBPFTD202-10 5/8 3-1/4 2-9/16 2-9/32 15/32 9/32 27/64 45/64 1-7/64 0.8661 0.2362 1/4 SB202-10 PFTD202 0.25
SBPFTD203 17 3-1/4 2-9/16 2-9/32 15/32 9/32 27/64 45/64 1-7/64 0.8661 0.2362 1/4 SB203 PFTD203 0.25
SBPFTD203-11 11/16 3-1/4 2-9/16 2-9/32 15/32 9/32 27/64 45/64 1-7/64 0.8661 0.2362 1/4 SB203-11 PFTD203 0.25
SBPFTD204 20 94 71.5 66 12.5 8.7 11 19.5 30.5 25 7 5/16 SB204 PFTD204 0.35
SBPFTD204-12 3/4 3-11/16 2-13/16 2-39/64 1/2 11/32 7/16 49/64 1-13/64 0.9843 0.2756 5/16 SB204-12 PFTD204 0.35
SBPFTD205 25 98 76.2 69 12.5 8.7 11 20 32 27 7.5 5/16 SB205 PFTD205 0.37
SBPFTD205-13 13/16 3-7/8 3 2-23/32 1/2 11/32 7/16 25/32 1-17/64 1.063 0.2953 5/16 SB205-13 PFTD205 0.37
SBPFTD205-14 7/8 3-7/8 3 2-23/32 1/2 11/32 7/16 25/32 1-17/64 1.063 0.2953 5/16 SB205-14 PFTD205 0.37
SBPFTD205-15 15/16 3-7/8 3 2-23/32 1/2 11/32 7/16 25/32 1-17/64 1.063 0.2953 5/16 SB205-15 PFTD205 0.37
SBPFTD205-16 1 3-7/8 3 2-23/32 1/2 11/32 7/16 25/32 1-17/64 1.063 0.2953 5/16 SB205-16 PFTD205 0.37
SBPFTD206 30 116 89.5 81 13.7 10.3 13 22 35.7 30 8 3/8 SB206 PFTD206 0.59
SBPFTD206-17 1-1/16 4-9/16 3-17/32 3-13/64 35/64 13/32 33/64 55/64 1-13/32 1.1811 0.315 3/8 SB206-17 PFTD206 0.59
SBPFTD206-18 1-1/8 4-9/16 3-17/32 3-13/64 35/64 13/32 33/64 55/64 1-13/32 1.1811 0.315 3/8 SB206-18 PFTD206 0.59
SBPFTD206-19 1-3/16 4-9/16 3-17/32 3-13/64 35/64 13/32 33/64 55/64 1-13/32 1.1811 0.315 3/8 SB206-19 PFTD206 0.59
SBPFTD206-20 1-1/4 4-9/16 3-17/32 3-13/64 35/64 13/32 33/64 55/64 1-13/32 1.1811 0.315 3/8 SB206-20 PFTD206 0.59
SBPFTD207 35 122 100 89 15.4 10.3 13 24 38.9 32 8.5 3/8 SB207 PFTD207 0.73

Unit NO. Dimensions(mm/in.) Bolt Size mm/in. Bearing NO. Housing NO. Weight(kg)
d a e b i s g l z B n
SBPFTD207-20 1-1/4 4-13/16 3-15/16 3-1/2 39/64 13/32 33/64 61/64 1-17/32 1.2598 0.3346 3/8 SB207-20 PFTD207 0.73
SBPFTD207-21 1-5/16 4-13/16 3-15/16 3-1/2 39/64 13/32 33/64 61/64 1-17/32 1.2598 0.3346 3/8 SB207-21 PFTD207 0.73
SBPFTD207-22 1/3/8 4-13/16 3-15/16 3-1/2 39/64 13/32 33/64 61/64 1-17/32 1.2598 0.3346 3/8 SB207-22 PFTD207 0.73
SBPFTD207-23 1-7/16 4-13/16 3-15/16 3-1/2 39/64 13/32 33/64 61/64 1-17/32 1.2598 0.3346 3/8 SB207-23 PFTD207 0.73
